8.2 Why the Configuration Model is not satisfied

An exemplary starting situation after a configuration, that means after selecting Values for the Configuration Attributes:

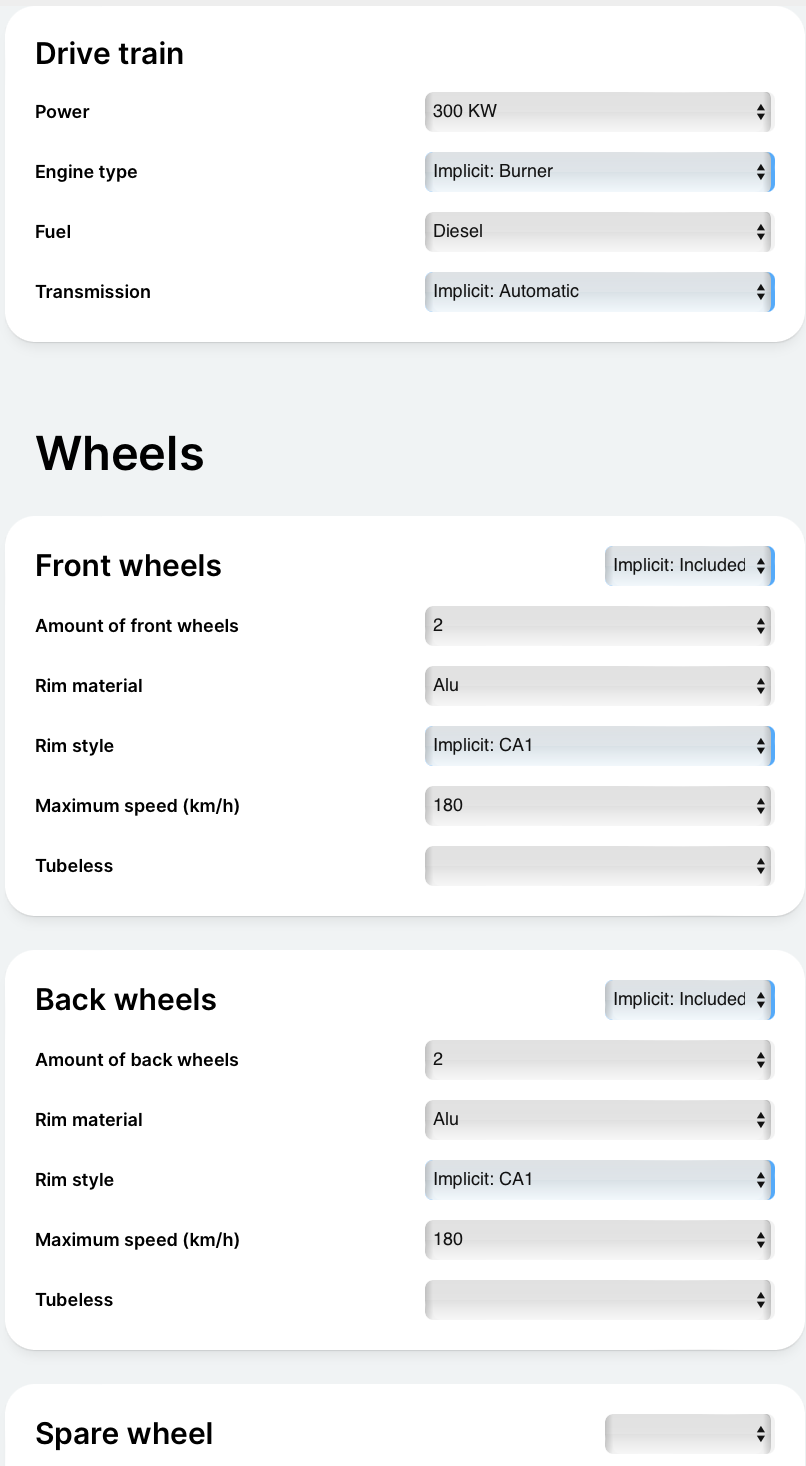

Fig. 8-5: An exemplary initial state after a configuration

All Attributes are satisfied. But - as shown the Consequences - the Configuration Model as a whole is not satisfied yet. Why not?

Get the Consequences:

### Get consequences
GET {{baseUrl}}/engine/v2/session/configuration/consequence
X-SESSION-ID: {{sessionId}}
Content-Type: application/json

A section of the Consequences:

{
  "isConfigurationSatisfied": false,
  "canAttributeContributeToConfigurationSatisfaction": [
    {
      "localId": "Tubeless",
      "sharedConfigurationModelId": "TechnicalShared",
      "componentPath": []
    },
    {
      "localId": "SpareWheel",
      "componentPath": ["Automobile"]
    }
  ],
  "choiceConsequences": [
    {
      "attributeId": {
        "localId": "CarSize",
        "componentPath": []
      },
      "isSatisfied": true,
      "cardinality": {
        "lowerBound": 1,
        "upperBound": 1
      },
      "values": [
        {
          "choiceValueId": "Big",
          "possibleDecisionStates": [
            "Included"
          ]
        },

Each of the Attributes is satisfied but the Configuration Model is not satisfied ("isConfigurationSatisfied": false). The Consequences provide the indication that the two optional Attributes can contribute to satisfying the Configuration Model: "Tubeless" and "SpareWheel".

This is caused by Rule 16, which requires that either the Component Attribute "SpareWheel" is selected or the Boolean Attribute "Tubeless" is set to "true".

{
  "constraintId": "Rule16:TubelessTiresWithoutSpereWheel",
  "textualConstraint": "shared::TechnicalShared::Tubeless OR SpareWheel"
}

"No" is now selected for "Tubeless". This has the effect that the "SpareWheel" component is implicitly included, as seen in figure 8-6.

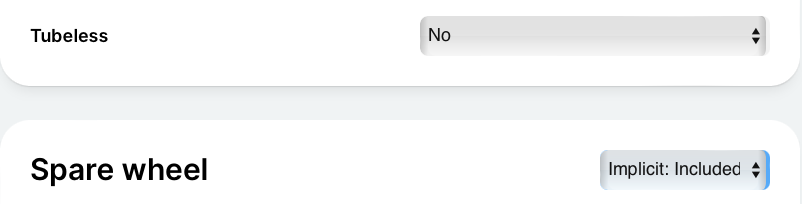

Fig. 8-6: "Tubeless" explicitly selected and "SpareWheel" implicitly included

Now the question again: Why is the Configuration Model not satisfied?

POST {{baseUrl}}/engine/v2/session/configuration/consequence/explain/why-not-satisfied
X-SESSION-ID: {{sessionId}}
Content-Type: application/json

{
    "type": "Configuration"
}

The response:

{
  "type": "ExplainConflict",
  "title": "ExplainConflict",
  "status": 409,
  "detail": ""
}

Since the Configuration Model is now satisfied, the request "Why NOT satisfied Configuration" provides the status code 409 with the title "ExplainConflict".

A little section of the Consequences shows the state of the Configuration Model:

{
  "isConfigurationSatisfied": true,
  "canAttributeContributeToConfigurationSatisfaction": [],
  "choiceConsequences": [
    {
      "attributeId": {
        "localId": "CarSize",
        "componentPath": []
      },
      "isSatisfied": true,
      ...
